Last week in Part One I went through how to mount directories from the host server into a docker container in order to persist data.

However, you don’t have to do this in order to share volumes between containers. Another method is to create named volumes within the docker ecosystem (as it were) and then map those volumes into containers upon creation.

Here’s how to do it.

First we create the volume that we want to share within docker: –

docker volume create sqldata

docker volume ls

Now let’s create two containers both referencing the volume. One will be up and running whilst the other remains in the stopped state: –

docker run -d -p 15789:1433 -v sqldata:C\sqldata --env ACCEPT_EULA=Y --env sa_password=Testing11@@ --name testcontainer microsoft/mssql-server-windows


docker create -p 15789:1433 -v sqldata:C\sqldata --env ACCEPT_EULA=Y --env sa_password=Testing11@@ --name testcontainer2 microsoft/mssql-server-windows

Let’s have a look in the first container to see if the volume is there: –

docker exec -i testcontainer powershell

Update – April 2018
Loopback has now been enabled for Windows containers, so we can use localhost,15789 to connect locally. You can read more about it here

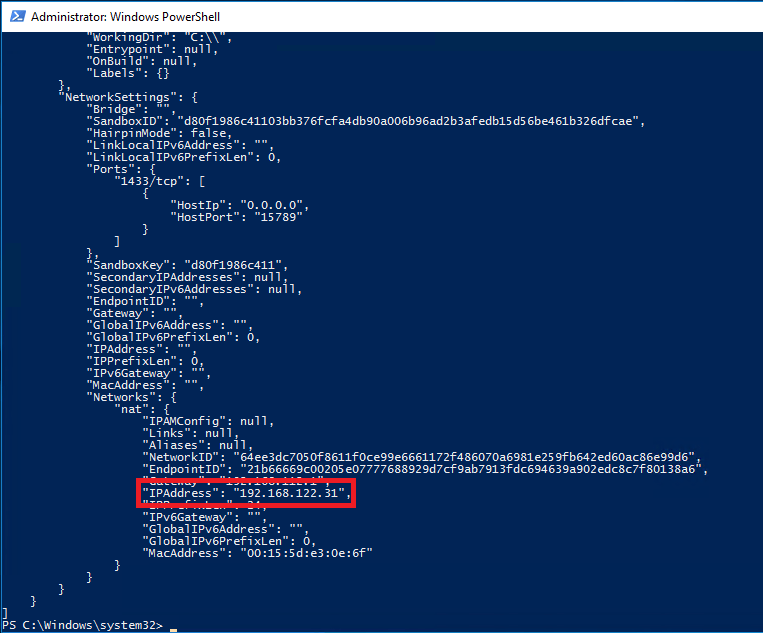

Ok, it’s there. So grab the private IP address of the container so that we can connect to it in SSMS: –

docker inspect testcontainer

Now we’ll create a database with its files in that location: –

USE [master];
GO

CREATE DATABASE [TestDB]
    ON PRIMARY
(NAME = N'TestDB', FILENAME = N'C:\sqldata\TestDB.mdf')
    LOG ON
(NAME = N'TestDB_log', FILENAME = N'C:\sqldata\TestDB_log.ldf')
GO

USE [TestDB];
GO

CREATE TABLE dbo.testtable
(ID INT);
GO

INSERT INTO dbo.testtable
(ID)
VALUES
(10);
GO 100

Right, now let’s blow that first container away and spin up the second one: –

docker stop testcontainer

docker rm testcontainer

docker start testcontainer2

Hmm, all looks good. But let’s check that the volume is there with the database’s files: –

docker exec -i testcontainer2 powershell

cd sqldata

ls

Cool! The files are there, so let’s connect to the SQL instance within the second container and see if we can attach the database: –

docker inspect testcontainer2

Let’s try the attach: –

USE [master]
GO
CREATE DATABASE [TestDB] ON
( FILENAME = N'C:\sqldata\TestDB.mdf' ),
( FILENAME = N'C:\sqldata\TestDB_log.ldf' )
 FOR ATTACH
GO

Awesome stuff! We’ve got a database that was created in another container successfully attached into another one.

So at this point you may be wondering what the advantage is of doing this over mounting folders from the host? Well, to be honest, I really can’t see what the advantages are.

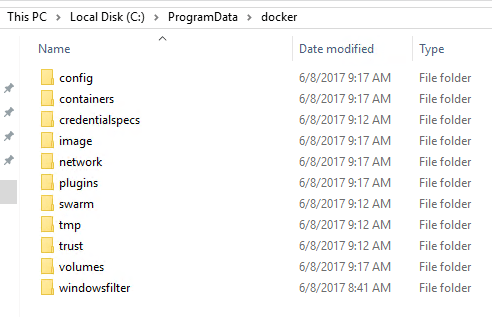

The volume is completely contained within the docker ecosystem so if anything happens to the docker install, we’ve lost the data. OK, OK, I know it’s in C:\ProgramData\docker\volumes\ on the host but still I’d prefer to have more control over its location.

I like the idea of mounted volumes better if I’m honest. I can specify where my database files are with much more control and I can also have access if needed.

However, each to their own personal preference and if you have a good reason for using named volumes over mounted volumes, let me know 🙂

Thanks for reading!

Normally when I work with SQL instances within containers I treat them as throw-away objects. Any modifications that I make to the databases within will be lost when I drop the container.

However, what if I want to persist the data that I have in my containers? Well, there are options to do just that. One method is to mount a directory from the host into a container.

Full documentation can be found here but I’ll run through an example step-by-step here.

First create a directory on the host that we will mount into the container: –

mkdir D:\SQLServer

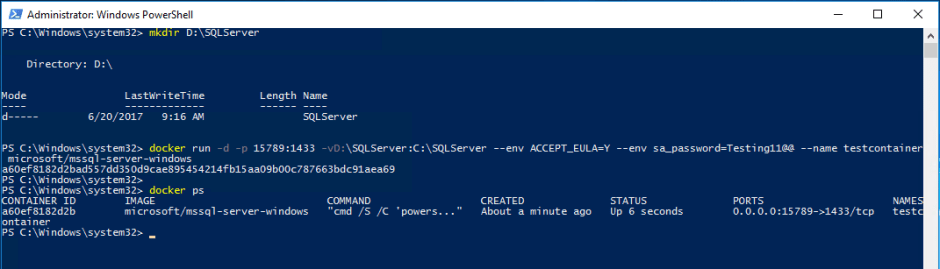

And now build a container using the -v flag to mount the directory: –

docker run -d -p 15789:1433 -v D:\SQLServer:C:\SQLServer --env ACCEPT_EULA=Y --env sa_password=Testing11@@ --name testcontainer microsoft/mssql-server-windows

So that’s built us a container running an empty instance of SQL Server with the D:\SQLServer directory on the host mounted as C:\SQLServer in the container.

Update – April 2018
Loopback has now been enabled for Windows containers, so we can use localhost,15789 to connect locally. You can read more about it here

Now, let’s create a database on the drive that we’ve mounted in the container. First grab the container private IP (as we’re connecting locally on the host): –

docker inspect testcontainer

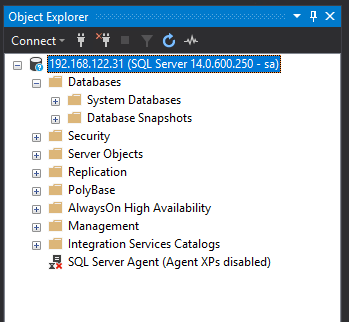

And use it to connect to the SQL instance within the container:-

Now create the database with its files in the mounted directory : –

USE [master];
GO

CREATE DATABASE [TestDB]
	ON PRIMARY
(NAME = N'TestDB', FILENAME = N'C:\SQLServer\TestDB.mdf')
	LOG ON
(NAME = N'TestDB_log', FILENAME = N'C:\SQLServer\TestDB_log.ldf')
GO

And let’s create a simple table with some data: –

USE [TestDB];
GO

CREATE TABLE dbo.testtable
(ID INT);
GO

INSERT INTO dbo.testtable
(ID)
VALUES
(10);
GO 100

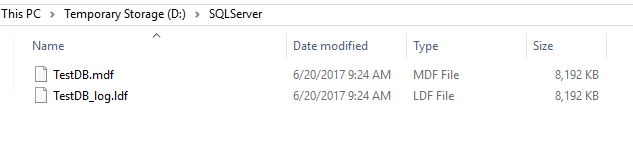

Cool, if we check the directory on the host, we’ll see the database’s files: –

OK, now let’s blow that container away: –

docker stop testcontainer

docker rm testcontainer

If you check the host, the directory with the database files should still be there.

Now, let’s create another container, mounting the directory back in: –

docker run -d -p 15799:1433 -v D:\SQLServer:C:\SQLServer --env ACCEPT_EULA=Y --env sa_password=Testing11@@ --name testcontainer2 microsoft/mssql-server-windows

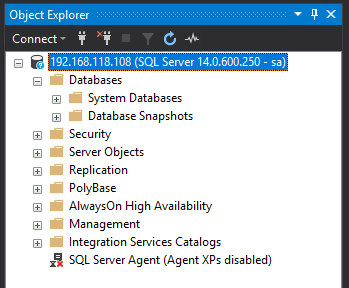

Same as before, grab the private IP and connect into SQL Server: –

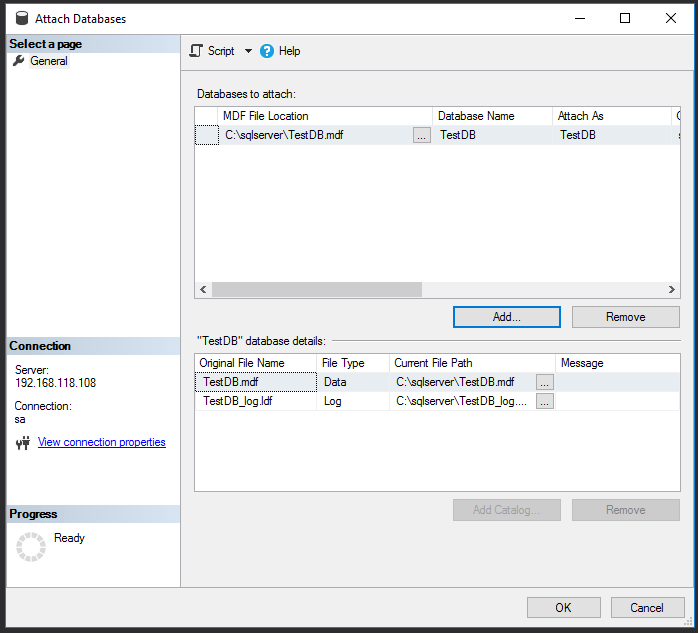

No database! Of course, we need to attach it! So…

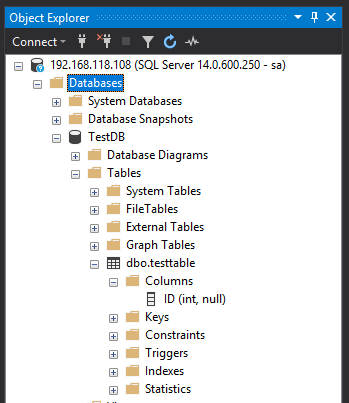

And there it is!

Cool, so a database created in one container has been attached into a SQL instance running in another. Notice that I didn’t detach the database before stopping and then dropping the container. Now, that doesn’t mean that the process of shutting down a container stops the SQL instance gracefully. It’d be interesting to see what happens if a container is stopped whilst queries are running, I bet if we deleted the container without stopping it first the database would be corrupt.

Anyway, using the -v flag to mount directories from the host into a container is one way of persisting data when using docker.

Thanks for reading!
