What is the difference between using a load balanced service and an ingress to access applications in Kubernetes?
Basically, they achieve the same thing. Being able to access an application that’s running in Kubernetes from outside of the cluster, but there are differences!
The key difference between the two is that ingress operates at networking layer 7 (the application layer) so routes connections based on http host header or url path. Load balanced services operate at layer 4 (the transport layer) so can load balance arbitrary tcp/udp/sctp services.
Ok, that statement doesn’t really clear things up (for me anyway). I’m a practical person by nature…so let’s run through examples of both (running everything in Kubernetes for Docker Desktop).
What we’re going to do is spin up two nginx pages that will serve as our applications and then firstly use load balanced services to access them, followed by an ingress.
So let’s create two nginx deployments from a custom image (available on the GHCR): –
kubectl create deployment nginx-page1 --image=ghcr.io/dbafromthecold/nginx:page1 kubectl create deployment nginx-page2 --image=ghcr.io/dbafromthecold/nginx:page2
And expose those deployments with a load balanced service: –
kubectl expose deployment nginx-page1 --type=LoadBalancer --port=8000 --target-port=80 kubectl expose deployment nginx-page2 --type=LoadBalancer --port=9000 --target-port=80
Confirm that the deployments and services have come up successfully: –
kubectl get all

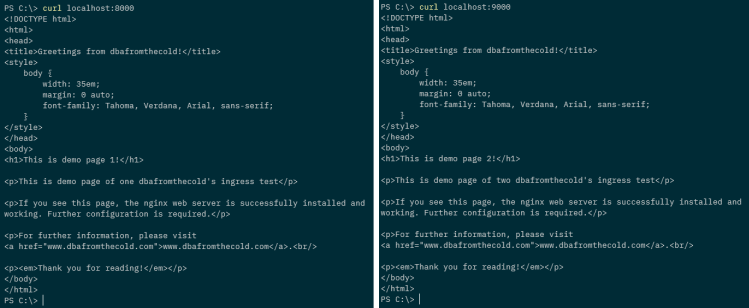

Ok, now let’s check that the nginx pages are working. As we’ve used a load balanced service in k8s in Docker Desktop they’ll be available as localhost:PORT: –
curl localhost:8000 curl localhost:9000
Great! So we’re using the external IP address (local host in this case) and a port number to connect to our applications.
Now let’s have a look at using an ingress.
First, let’s get rid of those load balanced services: –
kubectl delete service nginx-page1 nginx-page2
And create two new cluster IP services: –
kubectl expose deployment nginx-page1 --type=ClusterIP --port=8000 --target-port=80 kubectl expose deployment nginx-page2 --type=ClusterIP --port=9000 --target-port=80
So now we have our pods running and two cluster IP services, which aren’t accessible from outside of the cluster: –
The services have no external IP so what we need to do is deploy an ingress controller.
An ingress controller will provide us with one external IP address, that we can map to a DNS entry. Once the controller is up and running we then use an ingress resources to define routing rules that will map external requests to different services within the cluster.
Kubernetes currently supports GCE and nginx controllers, we’re going to use an nginx ingress controller.

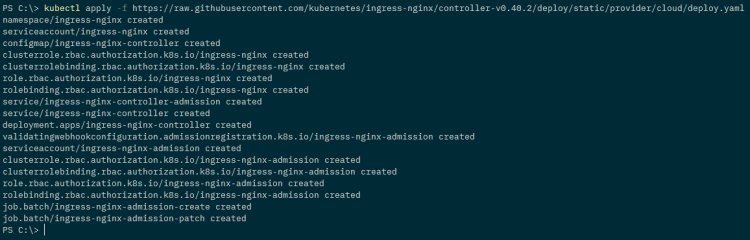

To spin up the controller run: –
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v0.40.2/deploy/static/provider/cloud/deploy.yaml

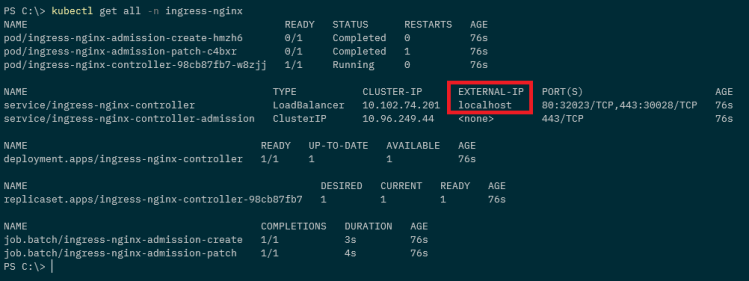

We can see the number of resources that’s going to create its own namespace, and to confirm they’re all up and running: –
kubectl get all -n ingress-nginx
Note the external IP of “localhost” for the ingress-nginx-controller service.
Ok, now we can create an ingress to direct traffic to our applications. Here’s an example ingress.yaml file: –
apiVersion: networking.k8s.io/v1 kind: Ingress metadata: name: ingress-testwebsite annotations: kubernetes.io/ingress.class: "nginx" spec: rules: - host: www.testwebaddress.com http: paths: - path: /pageone pathType: Prefix backend: service: name: nginx-page1 port: number: 8000 - path: /pagetwo pathType: Prefix backend: service: name: nginx-page2 port: number: 9000
Watch out here. In Kubernetes v1.19 ingress went GA so the apiVersion changed. The yaml above won’t work in any version prior to v1.19.
Anyway, the main points in this yaml are: –
annotations: kubernetes.io/ingress.class: "nginx"
Which makes this ingress resource use our ingress nginx controller.
rules: - host: www.testwebaddress.com
Which sets the URL we’ll be using to access our applications to http://www.testwebaddress.com
- path: /pageone pathType: Prefix backend: service: name: nginx-page1 port: number: 8000 - path: /pagetwo pathType: Prefix backend: service: name: nginx-page2 port: number: 9000
Which routes our requests to the backend cluster IP services depending on the path (e.g. – http://www.testwebaddress.com/pageone will be directed to the nginx-page1 service)
You can create the ingress.yaml file manually and then deploy to Kubernetes or just run: –
kubectl apply -f https://gist.githubusercontent.com/dbafromthecold/a6805ca732eac278e902bbcf208aef8a/raw/e7e64375c3b1b4d01744c7d8d28c13128c09689e/testnginxingress.yaml
Confirm that the ingress is up and running (it’ll take a minute to get an address): –
kubectl get ingress
N.B. – Ignore the warning (if you get one like in the screen shot above), we’re using the correct API version
Finally, we now also need to add an entry for the web address into our hosts file (simulating a DNS entry): –
And now we can browse to the web pages to see the ingress in action!
And that’s the differences between using load balanced services or an ingress to connect to applications running in a Kubernetes cluster. The ingress allows us to only use the one external IP address and then route traffic to different backend services whereas with the load balanced services, we would need to use different IP addresses (and ports if configured that way) for each application.
Thanks for reading!
