Last week I saw a thread on twitter about how to get replication setup for SQL Server running in a container. Now I know very little about replication, it’s not an area of SQL that I’ve had a lot of exposure to but I’m always up for figuring stuff out (especially when it comes to SQL in containers).
So let’s run through how to set it up here.
First, create a dockerfile to build an image from the SQL Server 2019 CTP 2.2 image with the SQL Server Agent enabled: –
FROM mcr.microsoft.com/mssql/server:2019-CTP2.2-ubuntu RUN /opt/mssql/bin/mssql-conf set sqlagent.enabled true CMD /opt/mssql/bin/sqlservr
Now build the image: –
docker build -t sqlreplication .
The next step is to create a custom docker network: –
docker network create repnet

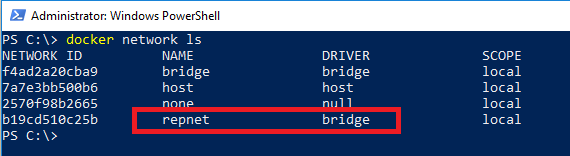

Confirm the network has been created: –
docker network ls
This stage is the key, containers running on the same network can communicate with each other by container name or IP address. More information about docker networking can be found here.
Once the network is created, run two containers using the network: –
docker run -d -p 15111:1433 ` --env ACCEPT_EULA=Y --env SA_PASSWORD=Testing1122 ` --net repnet ` --name container1 ` sqlreplication docker run -d -p 15222:1433 ` --env ACCEPT_EULA=Y --env SA_PASSWORD=Testing1122 ` --net repnet ` --name container2 ` sqlreplication
The last (docker) step is to create a directory within container1 for the replication data: –
docker exec -it container1 mkdir /var/opt/mssql/data/ReplData/
And that’s it docker-wise! We can now setup replication within SQL itself. The steps below are taken from the Microsoft documentation here that goes through how to setup replication for SQL on Linux (slightly modified but not by much).
So let’s run through and see it in action!
Connect to container1 and create the database, table, and insert data that we want to replicate: –
USE [master]; GO CREATE DATABASE [Sales]; GO USE [SALES]; GO CREATE TABLE CUSTOMER([CustomerID] [int] NOT NULL, [SalesAmount] [decimal] NOT NULL); GO INSERT INTO CUSTOMER (CustomerID, SalesAmount) VALUES (1,100),(2,200),(3,300); GO
Connect to container2 and create (just) the database to receive the replicated data: –
USE [master]; GO CREATE DATABASE [Sales]; GO
Connect back to container1 and configure the distributor (following the MS example the publisher will also be the distributor): –
USE [master]; GO DECLARE @distributor AS SYSNAME; DECLARE @distributorlogin AS SYSNAME; DECLARE @distributorpassword AS SYSNAME; DECLARE @Server SYSNAME; SELECT @Server = @@servername; SET @distributor = @Server; SET @distributorlogin = N'sa'; SET @distributorpassword = N'Testing1122'; EXEC sp_adddistributor @distributor = @distributor; EXEC sp_adddistributiondb @database = N'distribution' ,@log_file_size = 2 ,@deletebatchsize_xact = 5000 ,@deletebatchsize_cmd = 2000 ,@security_mode = 0 ,@login = @distributorlogin ,@password = @distributorpassword; GO USE [distribution]; GO DECLARE @snapshotdirectory AS NVARCHAR(500); SET @snapshotdirectory = N'/var/opt/mssql/data/ReplData/'; IF (NOT EXISTS (SELECT * FROM sysobjects WHERE name = 'UIProperties' AND type = 'U ')) CREATE TABLE UIProperties (id INT); IF (EXISTS (SELECT * FROM::fn_listextendedproperty('SnapshotFolder', 'user', 'dbo', 'table', 'UIProperties', NULL, NULL))) EXEC sp_updateextendedproperty N'SnapshotFolder' ,@snapshotdirectory ,'user' ,dbo ,'table' ,'UIProperties' ELSE EXEC sp_addextendedproperty N'SnapshotFolder' ,@snapshotdirectory ,'user' ,dbo ,'table' ,'UIProperties'; GO
Configure the publisher: –
USE [distribution]; GO DECLARE @publisher AS SYSNAME; DECLARE @distributorlogin AS SYSNAME; DECLARE @distributorpassword AS SYSNAME; DECLARE @Server SYSNAME; SELECT @Server = @@servername; SET @publisher = @Server; SET @distributorlogin = N'sa'; SET @distributorpassword = N'Testing1122'; EXEC sp_adddistpublisher @publisher = @publisher ,@distribution_db = N'distribution' ,@security_mode = 0 ,@login = @distributorlogin ,@password = @distributorpassword ,@working_directory = N'/var/opt/mssql/data/ReplData' ,@trusted = N'false' ,@thirdparty_flag = 0 ,@publisher_type = N'MSSQLSERVER'; GO
Configure the publication job run: –
USE [Sales]; GO DECLARE @replicationdb AS SYSNAME; DECLARE @publisherlogin AS SYSNAME; DECLARE @publisherpassword AS SYSNAME; SET @replicationdb = N'Sales'; SET @publisherlogin = N'sa'; SET @publisherpassword = N'Testing1122'; EXEC sp_replicationdboption @dbname = N'Sales' ,@optname = N'publish' ,@value = N'true'; EXEC sp_addpublication @publication = N'SnapshotRepl' ,@description = N'Snapshot publication of database ''Sales'' from Publisher ''''.' ,@retention = 0 ,@allow_push = N'true' ,@repl_freq = N'snapshot' ,@status = N'active' ,@independent_agent = N'true'; EXEC sp_addpublication_snapshot @publication = N'SnapshotRepl' ,@frequency_type = 1 ,@frequency_interval = 1 ,@frequency_relative_interval = 1 ,@frequency_recurrence_factor = 0 ,@frequency_subday = 8 ,@frequency_subday_interval = 1 ,@active_start_time_of_day = 0 ,@active_end_time_of_day = 235959 ,@active_start_date = 0 ,@active_end_date = 0 ,@publisher_security_mode = 0 ,@publisher_login = @publisherlogin ,@publisher_password = @publisherpassword; GO
Create the articles: –
USE [Sales]; GO EXEC sp_addarticle @publication = N'SnapshotRepl' ,@article = N'customer' ,@source_owner = N'dbo' ,@source_object = N'customer' ,@type = N'logbased' ,@description = NULL ,@creation_script = NULL ,@pre_creation_cmd = N'drop' ,@schema_option = 0x000000000803509D ,@identityrangemanagementoption = N'manual' ,@destination_table = N'customer' ,@destination_owner = N'dbo' ,@vertical_partition = N'false'; GO
Configure the subscription run, note the name of the subscriber (it’s the name of the second container): –
USE [Sales]; GO DECLARE @subscriber AS SYSNAME DECLARE @subscriber_db AS SYSNAME DECLARE @subscriberLogin AS SYSNAME DECLARE @subscriberPassword AS SYSNAME SET @subscriber = N'container2' SET @subscriber_db = N'Sales' SET @subscriberLogin = N'sa' SET @subscriberPassword = N'Testing1122' EXEC sp_addsubscription @publication = N'SnapshotRepl' ,@subscriber = @subscriber ,@destination_db = @subscriber_db ,@subscription_type = N'Push' ,@sync_type = N'automatic' ,@article = N'all' ,@update_mode = N'read only' ,@subscriber_type = 0; EXEC sp_addpushsubscription_agent @publication = N'SnapshotRepl' ,@subscriber = @subscriber ,@subscriber_db = @subscriber_db ,@subscriber_security_mode = 0 ,@subscriber_login = @subscriberLogin ,@subscriber_password = @subscriberPassword ,@frequency_type = 1 ,@frequency_interval = 0 ,@frequency_relative_interval = 0 ,@frequency_recurrence_factor = 0 ,@frequency_subday = 0 ,@frequency_subday_interval = 0 ,@active_start_time_of_day = 0 ,@active_end_time_of_day = 0 ,@active_start_date = 0 ,@active_end_date = 19950101; GO
Cool! Now we can run the Agent jobs: –
USE [msdb]; GO DECLARE @job1 SYSNAME; SELECT @job1 = name FROM msdb.dbo.sysjobs WHERE name LIKE '%-Sales-SnapshotRepl-1' EXEC dbo.sp_start_job @job1 GO USE [msdb]; GO DECLARE @job2 SYSNAME; SELECT @job2 = name FROM msdb.dbo.sysjobs WHERE name LIKE '%-Sales-SnapshotRepl-CONTAINER2-1' EXEC dbo.sp_start_job @job2 GO

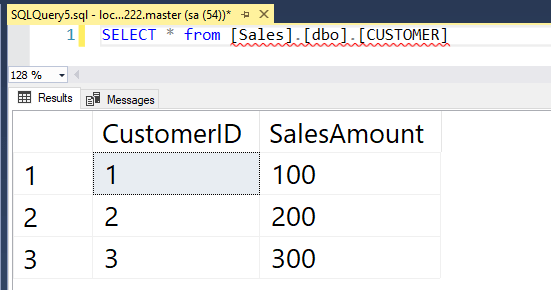

Awesome stuff, let’s check the data over on container2: –
SELECT * from [Sales].[dbo].[CUSTOMER]
Great stuff! We have data being replicated from a SQL instance in one container to a SQL instance in another container 🙂
Thanks for reading!
8 thoughts on “Setting up SQL Server replication in containers”
hi thank you for your article, I just don’t get how to set the name of the subscriber and make it communicate with the distributer? can you help me figure it out ? thank you 🙂
The name of the subscriber is the name of the second container (container2). It can be referenced from the first container (which is the publisher and distributor as they are on the same network (repnet).
thank you for your answer
do you do consulting ? so you can help me with my replication
please let me know
I’ve trying your tutorial and made it work easily. But if after this, I add datas in Sales, let’s say a line with (4,400), it’s not replicated automaticaly on the slave, and I have to launch agin job to see it appear on node2
do you know why ? thank you
In this example we setup snapshot replication, so the jobs need to be run to generate the snapshot and push it to the subscriber (the publisher and distributor are the same server in this setup). No data will be pushed to the subscriber without the jobs being run.
Dude, those scripts are fantastic. Was trying to get replication working on an AKS cluster with SQL linux containers, and this did the trick. Only two problems remain – “memory mapped file read” issues with the snapshot agent (wheeee), and Replication monitor (which can be solved by using the third option “Specify a Distributor and Add Its Publishers” instead.
Following up – we weren’t the ones creating the container, so we needed to create the ReplData folder ourselves.
EXEC master.dbo.xp_create_subdir ‘/var/opt/mssql/ReplData’
FYI – for SQL Server 2019 docker images, starting with CU9, snapshots are broken in some cases. “memory mapped file read” when trying to generate. It works in CU8, but is busted until at least CU11. I have a case open but no resolution as of 2021/08/25. Seems like a hard miss on their part, and I’m a bit astonished nobody else has run into it. On mine, the PK is not the clustered, but they said they could reproduce it with AdventureWorks.
