Back to some core SQL this week and one of my favourite features, extended events.

Introduced in SQL Server 2008 they are a big improvement on SQL profiler, in the amount of information that can be tracked (more) and the impact that they have on the system (less).

If you are still using profiler, please stop now! 🙂

One of the sessions that I have constantly running on SQL Server instances that I monitor is one to capture information on failed queries. You need to know what queries are failing on your production instances and why.

So let’s go through setting the session up, here’s the script to setup the extended event (remember to change the file paths for the filename and meta-data file!): –

CREATE EVENT SESSION [FailedQueries] ON SERVER
ADD EVENT sqlserver.error_reported
	(ACTION(sqlserver.client_app_name, sqlserver.client_hostname,
		sqlserver.database_name, sqlserver.sql_text, sqlserver.username)
	WHERE ([package0].[greater_than_int64]([severity], (10))))

ADD TARGET package0.event_file (SET
	filename = N'C:\SQLServer\XEvents\FailedQueries.xel'
	,metadatafile = N'C:\SQLServer\XEvents\FailedQueries.xem'
	,max_file_size = (5)
	,max_rollover_files = (10))

WITH (STARTUP_STATE = ON)
GO

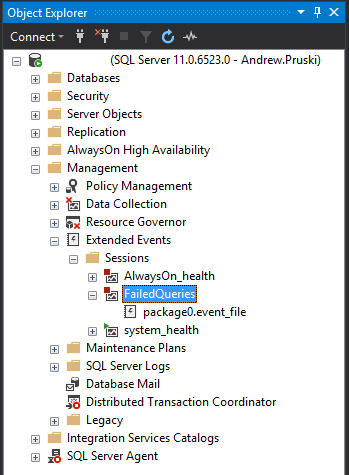

The new extended event can be viewed under Object Explorer > Management > Extended Events in SSMS: –

What this is going to do is create an extended event that will automatically startup when the SQL instance starts and capture all errors recorded that have a severity level greater than 10.

Full documentation on severity levels can be found here but levels 1 through 10 are really just information and you don’t need to worry about them.

I’ve also added in some extra information in the ACTION section (for bits and bobs that aren’t automatically included) and have set the maximum number of files that can be generated to 10, each with a max size of 5MB.

I’ve left pretty much everything else out for clarity but more details on the options that are available when creating sessions can be found here.

Let’s start the session up: –

ALTER EVENT SESSION [FailedQueries] ON SERVER
	STATE = START;
GO

Now you can watch the queries be recorded live by right clicking in SSMS and selecting “Watch Live Data”…

…but I want to show you how to parse the events recorded in the file. Let’s test the event by running: –

SELECT 1/0;

Which will obviously fail!

So now we can parse the event, this requires a little XQuery but it’s not too bad (also, remember to change the filepath!): –

SELECT
	[XML Data],
	[XML Data].value('(/event[@name=''error_reported'']/@timestamp)[1]','DATETIME')				AS [Timestamp],
	[XML Data].value('(/event/action[@name=''database_name'']/value)[1]','varchar(max)')		AS [Database],
	[XML Data].value('(/event/data[@name=''message'']/value)[1]','varchar(max)')				AS [Message],
	[XML Data].value('(/event/action[@name=''sql_text'']/value)[1]','varchar(max)')				AS [Statement]
FROM
	(SELECT
		OBJECT_NAME				 AS [Event],
		CONVERT(XML, event_data) AS [XML Data]
	FROM
		sys.fn_xe_file_target_read_file
	('C:\SQLServer\XEvents\FailedQueries*.xel',NULL,NULL,NULL)) as FailedQueries;
GO

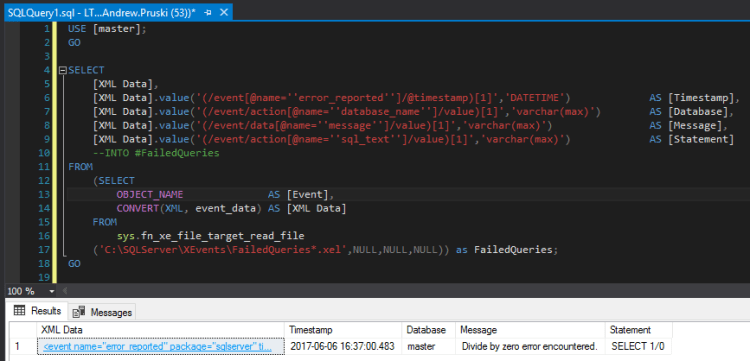

So there we have the XML generated by the extended event and we’ve parsed it into readable columns!

Now with larger files XQuery can be heavy intense on resources so what I tend to do is copy the event’s files to my local machine before parsing; so just be wary when running.

As I said earlier I always have this event running on instances of SQL that I monitor. There really shouldn’t be any impact in doing so as (hopefully) there aren’t that many queries that fail in the instance. As ever though, test this thoroughly before going anywhere near production with it.

Thanks for reading!

Following on from my last blog post I now want to run through how to identify large queries using Extended Events.

Extended Events were introduced in SQL Server 2008 and allow monitoring to be run against a server with a lower performance impact than profiler sessions and server side traces.

There’s now a nice GUI in SQL Server 2012 in which you can setup your Extended Event session but I always like to start with creating a session using T-SQL:-

USE [master];
GO

CREATE EVENT SESSION [QueriesWith200kReads] ON SERVER
ADD EVENT sqlserver.sql_batch_completed(
    ACTION(sqlserver.client_hostname,sqlserver.database_name,sqlserver.session_id,sqlserver.sql_text,sqlserver.tsql_stack,sqlserver.username)
    WHERE ([logical_reads]>200000))
ADD TARGET package0.event_file(SET filename=N'C:\SQLServer\XEvents\QueriesWith200kReads.xel')
GO

The script above will capture all SQL batches executed on the server that perform over 200,000 reads. I’ve set the target as a .XEL file and have defined what information to capture.

The session can then be started:-

ALTER EVENT SESSION [QueriesWith200kReads]
ON SERVER
STATE = START;
GO

While the session is running, the following can be executed to see how many queries have been captured:-

SELECT COUNT(*)
FROM sys.fn_xe_file_target_read_file
 ('C:\SQLServer\XEvents\QueriesWith200kReads*.xel',NULL,NULL,NULL);
GO

To query the data, XQUERY can be used. The below script grabs all the data from the session in a CTE and then combines it to give an overall view so that we can see which queries are being executed the most and are causing the most pain!

WITH CTE_ExecutedSQLStatements AS
(SELECT
	[XML Data],
	[XML Data].value('(/event[@name=''sql_statement_completed'']/@timestamp)[1]','DATETIME')	AS [Time],
	[XML Data].value('(/event/data[@name=''duration'']/value)[1]','int')						AS [Duration],
	[XML Data].value('(/event/data[@name=''cpu_time'']/value)[1]','int')						AS [CPU],
	[XML Data].value('(/event/data[@name=''logical_reads'']/value)[1]','int')					AS [logical_reads],
	[XML Data].value('(/event/data[@name=''physical_reads'']/value)[1]','int')					AS [physical_reads],
	[XML Data].value('(/event/action[@name=''sql_text'']/value)[1]','varchar(max)')				AS [SQL Statement]
FROM
	(SELECT
		OBJECT_NAME				 AS [Event],
		CONVERT(XML, event_data) AS [XML Data]
	FROM
		sys.fn_xe_file_target_read_file
	('C:\SQLServer\XEvents\QueriesWith200kReads*.xel',NULL,NULL,NULL)) as v)

SELECT
	[SQL Statement]		AS [SQL Statement],
	SUM(Duration)		AS [Total Duration],
	SUM(CPU)			AS [Total CPU],
	SUM(Logical_Reads)	AS [Total Logical Reads],
	SUM(Physical_Reads) AS [Total Physical Reads]
FROM
	CTE_ExecutedSQLStatements
GROUP BY
	[SQL Statement]
ORDER BY
	[Total Logical Reads] DESC
GO

But what if we want to change the session? In SQL Server 2012 a GUI was introduced so sessions can be setup and changed easily.

At the moment, the session picks up queries that are performing over 200,000 logical reads. What if we wanted to also include any queries that are performing a large amount of physical reads?

In order to do this, in Object Explorer go to Management > Extended Events > Sessions.

Right click the session and then go to properties.

Go to Events.

Click configure.

Click the filter tab.

Select OR in the And/Or box and then select Physical Reads, Greater than (>) and 10000 in the adjacent boxes.

Then either click OK or Script. I always script out the changes that I have made so that I can re-create the session if needed:-

ALTER EVENT SESSION [QueriesWith200kReads] ON SERVER
DROP EVENT sqlserver.sql_batch_completed

ALTER EVENT SESSION [QueriesWith200kReads] ON SERVER
ADD EVENT sqlserver.sql_batch_completed(
    ACTION(sqlserver.client_hostname,sqlserver.database_name,sqlserver.session_id,sqlserver.sql_text,sqlserver.tsql_stack,sqlserver.username)
    WHERE (([package0].[greater_than_uint64]([logical_reads],(200000))) OR ([physical_reads]>(10000))))
GO

Finally there is also the ability to watch events as they are captured (think profiler session with a lot less impact).

Again in Object Explorer go to Management > Extended Events > Sessions.
Right click the session and select Watch Live Data.

Columns can be added by right clicking the existing columns and selecting Choose Columns.

And there you have it, how to setup and alter an Extended Event session using scripts and/or the GUI.
